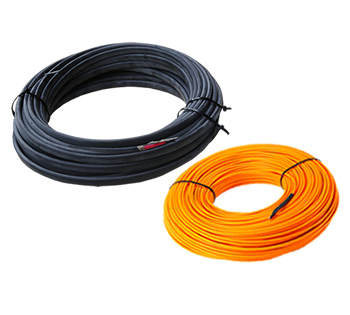

Snow Melting Cables
The Warmup Snow Melting Cables protect against snow and ice build-up over both concrete and asphalt surfaces to improve accessibility and avoid accidents.
Why heating pavements?
In winter, snow and ice threatens safety and represents a major problem which can cause slipping hazards for both people and vehicles. Avoid spending time clearing pavements when you are trying to get to work or just enjoy doing something else.
How does the System Work?
When the system detects snow fall or ice forming it automatically activates, to prevent their build up and deactivates again once it has been cleared to minimise energy usage. Systems can be designed to provide protection at temperatures down to -20°C.
Types of application
The snow melting cables for concrete and asphalt applications are available in a variety of lengths, allowing you to heat as small or large area as you need.
Ground applications
The heating cables are available in 2 versions. One version for under concrete and pavers and other version for under asphalt. The cables can be used in driveways, pathways, stairs, balconies, terraces, and any other ground area tht needs to be clear of snow and ice.
Roof and gutter applications
The snow melting cables are suitable for de-icing of roof and gutters
Features of the snowmelt cable

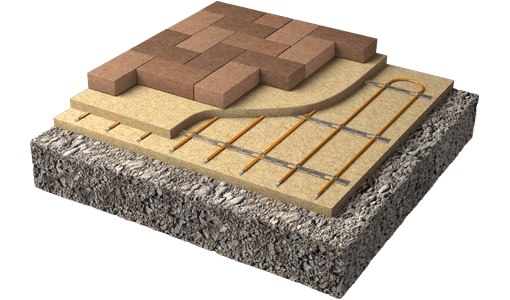

Warmup snow melting cables effortlessly prevent the accumulation of snow and ice on driveways, ramps, walkways, and stairs. The snow melting system is connected to a controller that receives moisture and temperature measurements. The cables are ideal for installation under concrete, pavers and asphalt.
Power Output
Provides a fixed heat output of 25 W/m and can be laid at spacings as close as 80 mm to provide a system with a capacity of 300 W/m² that would typically provide protection down to -20°C
Safety Standards
FIMKO approved and CE marked meeting the highest safety standards for ultimate peace of mind. 10 Warranty and SafetyNet Installation Guarantee
Covering Materials
Available for concrete, pavers and asphalt applications.
Key Benefits
Safety
Warmup snow melting systems dramatically enhance the safety of your property during the winter season. Protect your family at home or your customers at business from injuries resulting from slips and falls due to icy steps, walkways, driveways and parking areas.
Efficient
Alternative systems are complex in design, requiring a large amount of auxiliary equipment and extra space. Also, surfaces remain frost-free, so damage due to frost is reduced.Extended life of pavements
Installing Warmup snow melting system can extend the life of your pavements. Protect your pavements and environment by eliminating the use of harmful snow melting chemicals and salt.Guarantee and Warranty
Safety Net Installation Guarantee
If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.
10 Years Warranty
This product comes with 10 Years Warranty. We are completely confident in the standard of our products.
| Operating voltage | 220-230V AC, 50Hz |
| Power rating | 25W/m |
| Cable thickness | 6mm (cable for concrete and pavers) 7mm (cable for asphalt) |
| Supply cable length | 5m |
| Inner Insulation | Fluoropolymer |
| Outer Insulation | PVC |
| Operating temperature | 70ºC |
| Tensile strength | 300N |
| Compressive strength | 2000N |
| Minimum bending radius | 6 x diameter |
| UV resistant | Yes |
| Certificates |   |
W25SM (non-asphalt)
| Model | Cable Length (m) |
Wattage (W) |
Amperage (A) |
Resistance (Ω) |
| W25SM250 | 10 | 250 | 1,1 | 212 |
| W25SM500 | 20 | 500 | 2,2 | 106 |
| W25SM750 | 30 | 750 | 3,3 | 71 |
| W25SM1000 | 40 | 1000 | 4,4 | 53 |
| W25SM1250 | 50 | 1250 | 5,4 | 42 |
| W25SM1750 | 70 | 1750 | 7,6 | 30 |
| W25SM2250 | 90 | 2250 | 9,8 | 24 |
| W25SM2750 | 110 | 2750 | 12,0 | 19 |
| W25SM3300 | 132 | 3300 | 14,4 | 16 |
| W25SM4250 | 170 | 4250 | 18,5 | 12 |
| W25SM4750 | 190 | 4750 | 20,7 | 11 |
W25SMAP (asphalt)
| Model | Cable Length (m) |
Wattage (W) |
Amperage (A) |
Resistance (Ω) |
| W25SMAP4250 | 170 | 4250 | 18,5 | 12 |
| W25SMAP4750 | 190 | 4750 | 20,7 | 11 |
