DCM-PRO System
DCM-PRO is the fastest solution for the installation of a heated decoupling system in all areas, installing electric floor heating in minutes with less tile adhesive.
DCM-PRO System
DCM-PRO is the fastest solution for the installation of a heated decoupling system in all areas, installing electric floor heating in minutes with less tile adhesive.
Floor Type
Ceramic Floors
Stone Floors
Room Type
Large areas
Regular shape
Build Type
Refurb
New Build
Subfloor Type
Slab & Screed & Concrete
Timber Suspended & Batten Floors
Innovative System that Protects your Floor
DCM-PRO is a new innovative electric underfloor heating system from Warmup that is proven to protect tiled floors from cracking, as tested by ANSI 118.12:5.4 (American National Standards Institute).
Decoupling Membrane
Consisting of a decoupling membrane with a heating cable, the DCM-PRO makes the installation of electric underfloor heating quick and easy.
Anti-Fracture Matting
The system suits all floor types and protects the floor finish from cracks and damage caused by seasonal temperature changes that can affect the sub-floor. Tiles that are particularly prone to cracking benefit a lot from the anti-fracture matting of DCM-PRO; hence why this underfloor heating system is always recommended with tile flooring.
Innovative System that Protects your Floor
DCM-PRO is a new innovative electric underfloor heating system from Warmup that is proven to protect tiled floors from cracking, as tested by ANSI 118.12:5.4 (American National Standards Institute).
Decoupling Membrane
Consisting of an decoupling membrane with a heating cable, the DCM-PRO makes the installation of electric underfloor heating quick and easy.
Anti-Fracture Matting
The system suits all floor types and protects the floor finish from cracks and damage caused by seasonal temperature changes that can affect the sub-floor. Tiles that are particularly prone to cracking benefit a lot from the anti-fracture matting of DCM-PRO; hence why this underfloor heating system is always recommended with tile flooring.
How Does the Decoupling System Work?
The self-healing decoupling layer of the DCM-PRO mat protects floor finishes from damage. The layer contracts and expands to deal with structural movements in subfloors due to seasonal changes, preventing damage from occurring to floor coverings.
Adhesive layer slides and stretches with expansion.
Adhesive layer contracts and self-heals if gap shrinks due to seasonal changes.
Protects floor surface from damage caused by subfloor movement.
Adhesive layer slides and stretches with expansion.
Adhesive layer contracts and self-heals if gap shrinks due to seasonal changes.
Protects floor surface from damage caused by subfloor movement.
Key Benefits
Installs in minutes with less adhesive
The patent pending self-adhesive underside of the mat attaches directly to the subfloor and eliminates the need for an adhesive layer, significantly reducing installation time.
Use with all floor types
The DCM-PRO can be covered with self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl and carpet providing a constant output of 150W/m2.
Convenient sizing
The clear sizing based on the castellations of the mat provides quick and easy planning for installation, 2m2 of cable fits exactly 2m2 of mat. Sizing can be adjusted to increase or decrease coverage and power.
No tools required to fit the cable
The DCM-PRO Cable is designed to be easily fitted in the mat without any tools. The cable is highly-flexible, durable and provides maximum reliability. Comes with a life-time warranty when installed with the DCM-PRO Mat.
How to Install DCM-PRO
DCM-PRO decoupling membrane has an effective self-adhesive backing that does not require additional adhesive to firmly attach it to the subfloor, saving both time and cost. Just make sure that the subfloor is always clear from dust and clutter before attaching the membrane to the floor.
The sizes of the mat are designed for convenient sizing so that 2m2 of cable fits exactly 2m2 of mat. The spacing of the cable can, however, be adjusted to increase or decrease coverage and power. You don’t need any tools to install the system – this makes applying the cable in equal parallel lines to the castellations of the mat effortless. The cable’s highly-flexible and durable qualities contribute further to its ease of installation. The cable comes with a lifetime warranty when installed with the DCM-PRO Mat.

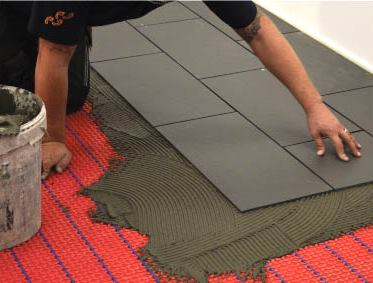

After this, the DCM-PRO Mat will be covered with self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl, and carpet.
As market-leaders in underfloor heating Warmup promises that this premium quality product is guaranteed for the lifetime of your floor.
How to Install DCM-PRO
DCM-PRO decoupling membrane has a very effective self-adhesive backing that does not require additional adhesive to firmly attach it to the subfloor, saving both time and cost. Just make sure that the subfloor is always clear from dust and clutter before attaching the membrane to the floor.
The sizes of the mat are designed for convenient sizing so that 2sqm of cable fits exactly 2sqm of mat. The spacing of the cable can, however, be adjusted to increase or decrease coverage and power. You don’t need any tools to install the system. This makes applying the cable in equal parallel lines to the castellations of the mat effortless. The cable’s highly-flexible and durable qualities contribute further to its ease of installation. The cable comes with a lifetime warranty when installed with the DCM-PRO Mat.
After this, the DCM-PRO Mat will be covered with self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with underfloor heating. This includes tiles, engineered wood, vinyl, and carpet.
As market-leaders in underfloor heating, Warmup promises that this premium quality product is guaranteed for the lifetime of your floor.
Installation Videos
1. Apply the cable

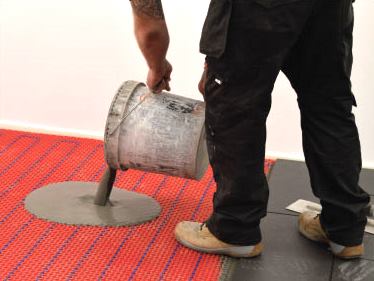

2. Pour the self-leveling compound
3. Full Installation Video Tutorial
Guarantee & Warranty
Safety Net Installation Guarantee
If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.
Lifetime Limited Warranty
This product comes with a Lifetime Warranty. We are completely confident in the standard of our products.DCM-PRO cable
| Operating voltage | 230 V AC ±15%, 50 Hz |
| IP Rating | IPX7 |
| Thickness | 4,5 mm (± 0,2 mm) |
| Wattage | ~13,5 W/m |
| Inner Insulation | Advanced Fluoropolymer (ETFE) |
| Min. Installation Temperature | 5°C |
| Supply cable length | 3 m |
| Approvals |   |
DCM-PRO membrane
| Thickness | 5,5mm |
| Composition | Polypropylene membrane with self-adhesive backing |
| Colour | Red |
| Spacing | 60, 90 and 120 mm |
| Sizing | 1 m² sheet / 15 m² roll |
DCM-Pro Cable
| Model | Cable length (m) | Wattage (W) | Amperage (A) | Resistance (Ω) |
| DCM-C-1 | 11,1 | 150 | 0,6 | 353 |
| DCM-C-1.5 | 16,6 | 225 | 0,9 | 235 |
| DCM-C-2 | 22,2 | 300 | 1,3 | 176 |
| DCM-C-2.5 | 27,7 | 375 | 1,6 | 141 |
| DCM-C-3 | 33,3 | 450 | 1,9 | 118 |
| DCM-C-3.5 | 38,8 | 525 | 2,2 | 101 |
| DCM-C-4 | 44,4 | 600 | 2,5 | 88 |
| DCM-C-4.5 | 50,0 | 675 | 2,8 | 78 |
| DCM-C-5 | 55,5 | 750 | 3,2 | 71 |
| DCM-C-6 | 66,6 | 900 | 3,8 | 59 |
| DCM-C-7 | 77,7 | 1050 | 4,4 | 50 |
| DCM-C-8 | 88,8 | 1200 | 5,0 | 44 |
| DCM-C-9 | 100,0 | 1350 | 5,7 | 39 |
| DCM-C-10 | 111,1 | 1500 | 6,3 | 35 |
| DCM-C-12 | 133,3 | 1800 | 7,6 | 29 |
| DCM-C-14 | 155,5 | 2100 | 8,8 | 25 |
| DCM-C-16 | 177,1 | 2400 | 10,1 | 22 |
DCM-Pro Mat
| Model | Format | Length (mm) | Width (mm) | Coverage (m²) |
| DCM-M-15 | Roll | 150 | 0,6 | 15 |
