Soft insulation
The insulated underlay is a thin polystyrene insulation barrier with effective acoustic properties to reduce contact noise. It is ideal for use under the WLFH foil heating system.
Soft insulation
The insulated underlay is a thin polystyrene insulation barrier with effective acoustic properties to reduce contact noise. It is ideal for use under the WLFH foil heating system.
Increases the energy efficiency of your underfloor heating system by pushing the heat-upwards
Only 6mm in depth
Easy to install
Helps make the most of your foil heater by creating a highly energy efficient heating system and sound proofed floors

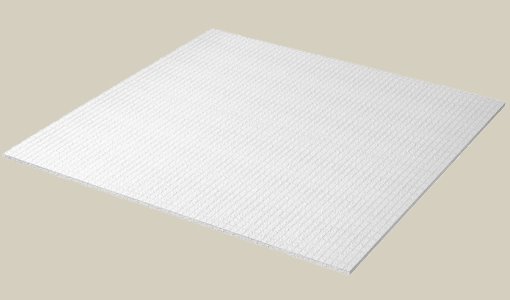

Insulated Underlay for Underfloor Heating
Warmup Insulated Underlay sits between the cold subfloor and the Foil Heater, reflecting heat upwards therefore making the underfloor heating system more efficient and effective. The foil backing acts as an effective moisture barrier. The Insulated Underlay has been specially developed for installation under the Foil Heater and Dual Overlay as part of a complete and stable system.
The insulated Underlay and Dual Overlay make an ideal combination for installation of soft and resilient floor coverings such as carpet and vinyl over the Warmup Foil Heater.
Insulated Underlay for Underfloor Heating
Warmup Insulated Underlay sits between the cold subfloor and Foil Heater, reflecting heat upwards therefore making the underfloor heating system more efficient and effective. The foil backing acts as an effective moisture barrier. The Insulated Underlay has been specially developed for installation under the Foil Heater and Dual Overlay as part of a complete and stable system.
The Insulated Underlay and Dual Overlay make the ideal combination for installation of soft and resilient floor coverings such as carpet and vinyl over the Warmup Foil Heater.
| Roll Size | 2,5, 5, 10 and 25 m² |
| Thickness | 6 mm |
| Composition | Top Layer: Grooved polystyrene Bottom Layer: Silver foil with adhesive overlap |
| Thermal resistance | 0,19 m²K/W |
| Contact Sound Reduction | 25dB ∆Lw when used in conjunction with the Warmup Dual Overlay System |
This Product is used with :

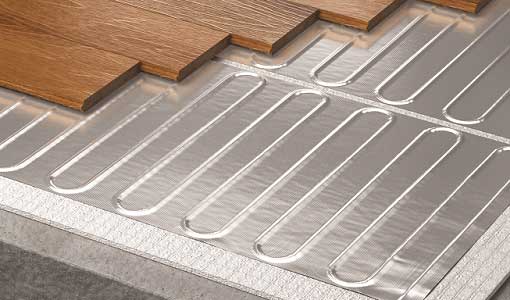

Foil heating system
Electric floor heating system for laminate, carpet, vinyl, engineered wood and other floating floor finishes.
